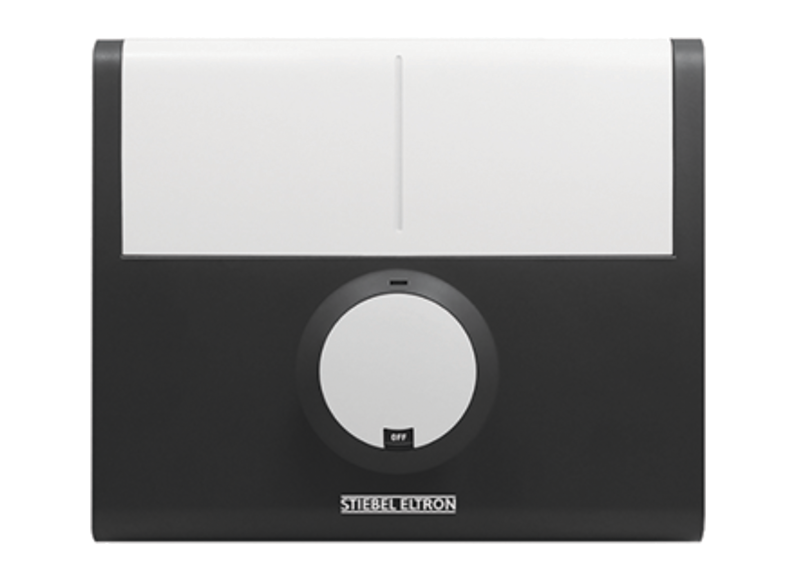

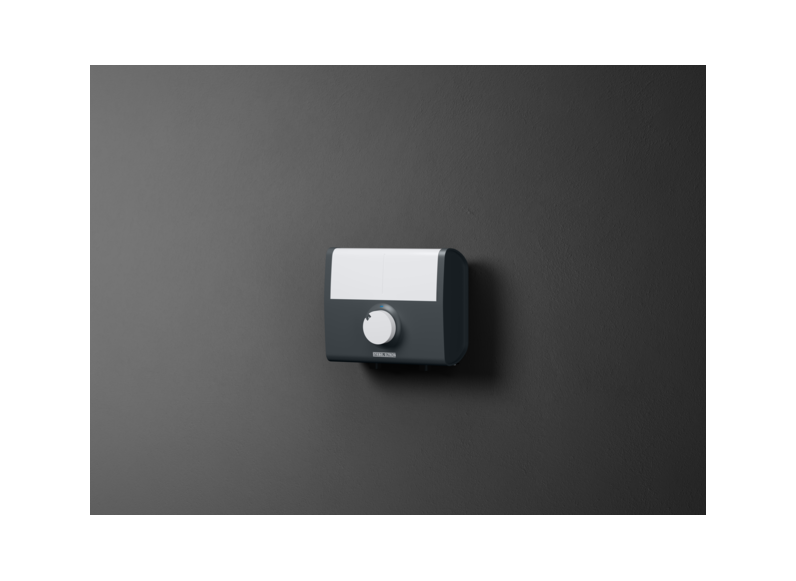

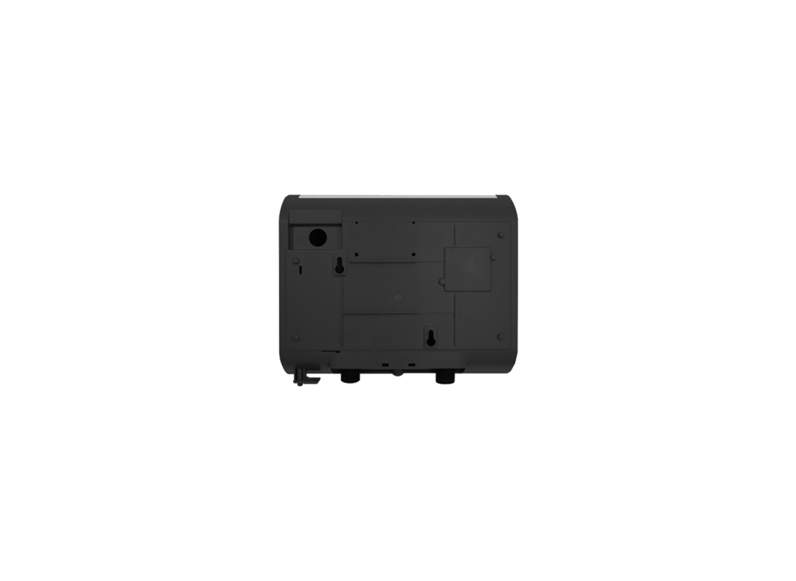

Compact instantaneous water heater
DDH 8 EC (VN)

    • Sufficient hot water for multiple draw-off points
    • Protection class IP25 (splash-proof)
    • Protection from electric shock with Earth Leakage Circuit Breaker (ELCB)
    • Temperature adjustment via 3-step power control
    • Compact design for space saving installation
    • Anti-scalding and overheating protection with thermal cut-out
    • Corrosion-resistant copper heating element and tank
    • Temperature adjustment via 3-step power control
    Questions about the product Get contact

    Product details

    Make way for efficiency

    A superb combination of compactness and convenience, the single-phase electric instantaneous water heaters from STIEBEL ELTRON provide hot water on demand with power control. These point-of-use water heaters supply your bathroom quickly and efficiently with hot water. No matter where you install this compact appliance, you will benefit from the energy efficiency it provides. It only heats water when a tap is actually turned on.

    The pleasure of water without the worries

    The built-in Earth Leakage Circuit Breaker (ELCB) detects any harmful leakage current and shuts off the power supply, thereby providing full protection from electric shock for you and your family. Moreover, our water heater is built according to the latest technical standard including EMC compatibility, for worry-free operation.



    Technical datasheet

    Product Number: 205244

    Height: 198 mm

    Width: 236 mm

    Depth: 115 mm

    Weight: 2.2 kg

    Electrical fuse protection: ELCB

    Rated output: 8.0 kW

    Electrical connection: 1/N/PE~220-240 V

    Type: Closed outlet

    Automatic flow switch: true

    Cylinder type: Copper

    Temperature setting: 3-stage

    Temperature control: Output control

    Anti-scalding protection: Thermostat with manual reset

    IP rating: IP25

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
