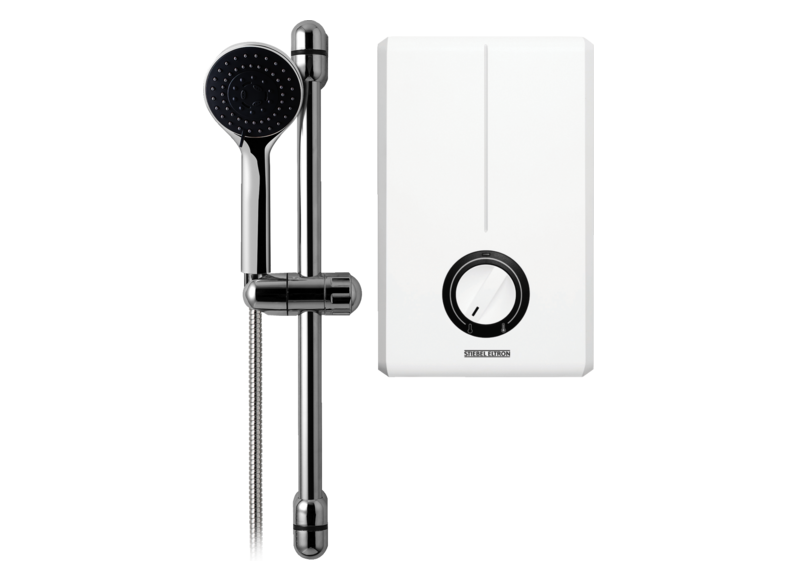

Instantaneous water heater for showers
XG 45 EC (VN)

    • Corrosion-free copper heating element for longer service life

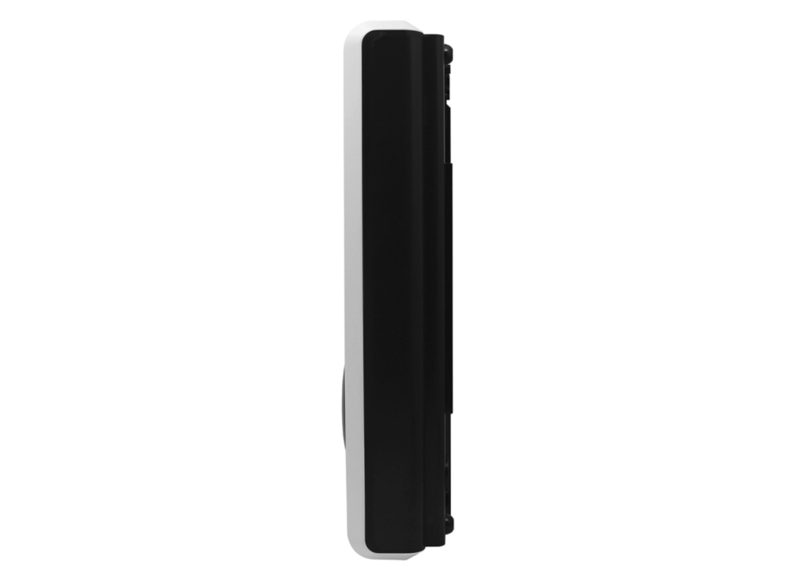

    • Extra slimline design with a depth of just 7.3 cm
    • Protection class IP25 (splash-proof)
    • Complete set optimised for a single shower
    • Protection from electric shock with Earth Leakage Circuit Breaker (ELCB)
    • Anti-scalding and overheating protection with double action thermostat
    • Temperature adjustment via stepless power control
    • High pressure and heat-resistant copper tank
    Questions about the product Get contact

    Product details

    Elegant and simple design



    Technical datasheet

    Product Number: 233225

    Electrical fuse protection: ELCB

    Rated output: 4,500 W

    Electrical connection: 1/N/PE~220-240 V

    Rated voltage: 220-240 V

    Display: without

    Heating element: Copper tubular

    Type: Open outlet

    Automatic flow switch: true

    Heating material: Copper

    Temperature setting: Variable

    Temperature control: Output control

    Anti-scalding protection: Double acting thermostat

    Shower accessories: 5-in-1 head shower with slide bar

    Colour: white

    IP rating: IP25

    Depth: 73 mm

    Height: 342 mm

    Width: 216 mm

    Weight: 1.8 kg

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
