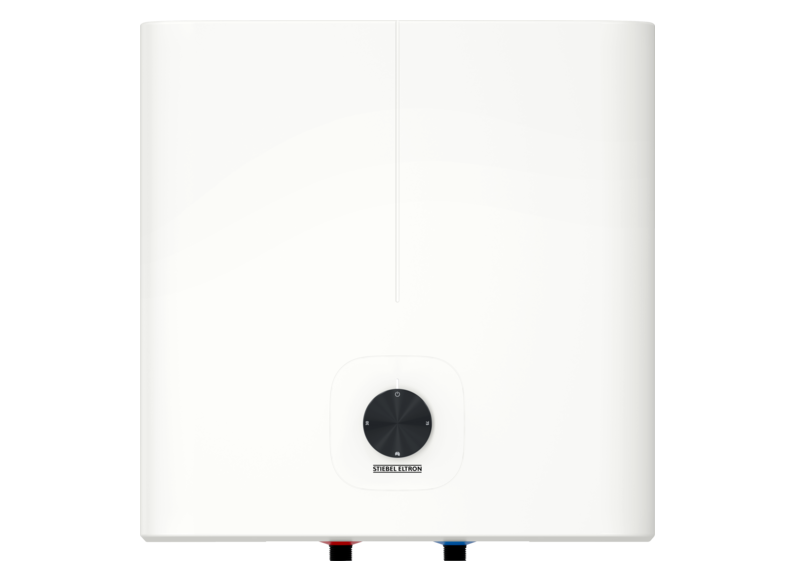

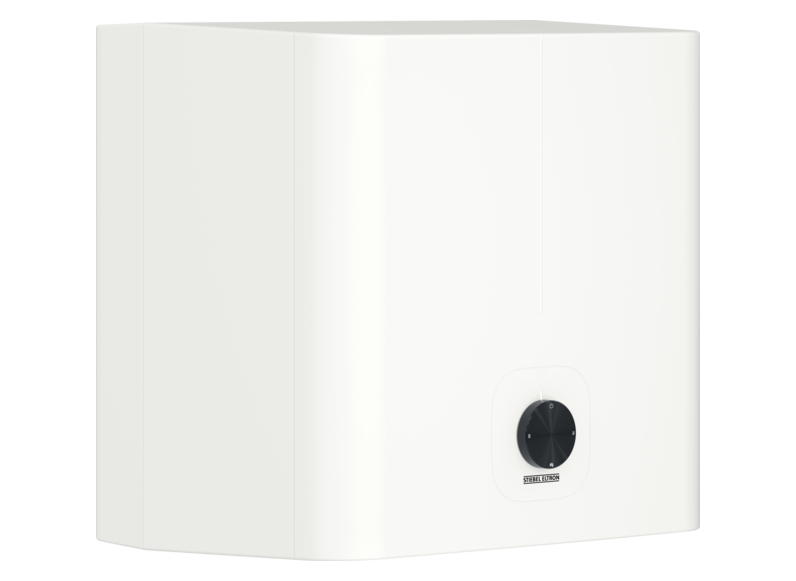

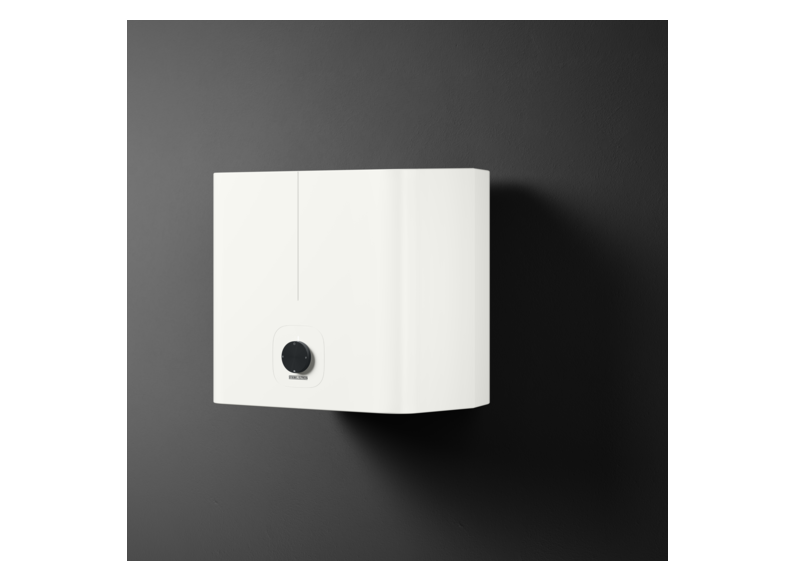

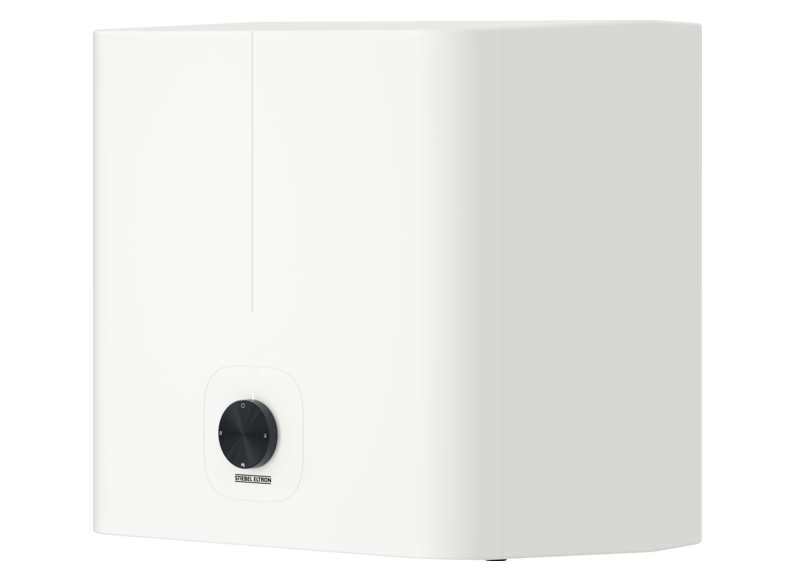

Wall mounted cylinder
ESH 30 B Trend (VN)

    • Supplies several draw-off points with hot water
    • Precise temperature control with capillary thermostat

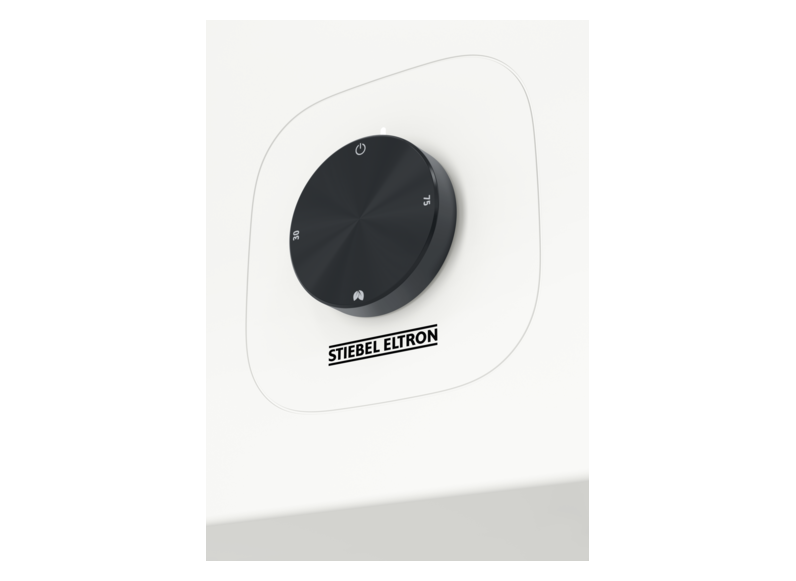

    • User friendly temperature selection up to 75 °C with rotary selector
    • Maintenance-free, enamelled heating element
    • Durable and corrosion-resistant casing
    • Highest safety standards due to integrated RCD (ELCB)
    Questions about the product Get contact

    Product details



    Technical datasheet

    Product Number: 207016

    Height: 440 mm

    Width: 370 mm

    Protective anode: Sacrificial magnesium anode

    Safety valve: Pressure safety valve

    IP rating: IP25

    Type of control: Thermostatic

    Cylinder material: steel, enamel

    Heating element material: Incoloy + enamel

    Temperature range: up to 75 °C

    Nominal capacity: 30 l

    Electrical connection: 1/N/PE~220-240 V

    Rated current: 11 A

    Rated output: 2,500 W

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
